BFT Deimos Ultra A400 Sliding Gate Motor Kit — 400kg
Gate Motor Kit
$749$819In stock
- Suitable for gates up to 400 kg
- 24 V DC sliding operator
- MERAK SL2 control system
- Widely used across Australian installations
Premium 24V sliding gate motor for residential gates up to 400kg where you want upgraded control without 600kg capacity. Merak SL2 diagnostics, D-Track detection, and magnetic limits make it a popular choice for homeowners and electricians who want clearer feedback during setup. Ideal when your gate is well within 400kg but you need IP44 protection and room to expand.
- Gate capacity
- 400 kg
- Motor type
- 24 V DC sliding operator
- Voltage
- 24 V DC
- Control system
- MERAK SL2
Technical specifications
| Model | Deimos Ultra BT A400 |
|---|---|
| Max gate weight | 400 kg |
| Motor voltage | 24 V DC |
| Control unit | MERAK SL2 |
| Impact detection | D-Track |
| Gate speed | 12 m/min |
| IP rating | IP44 |
| Duty cycle | Intensive residential |
| Type | 24 V DC sliding operator |
| Application | Sliding |

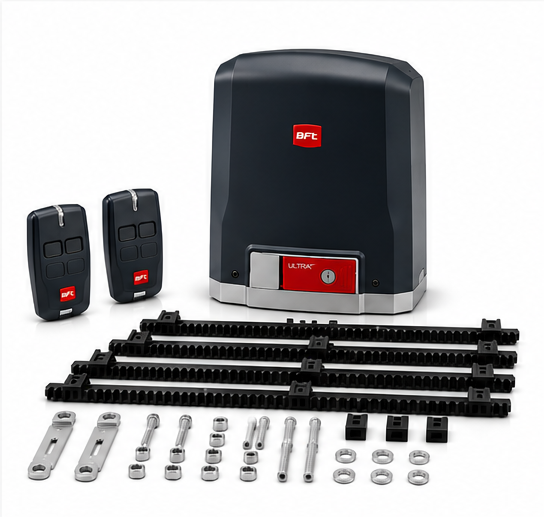

What's included
- Deimos Ultra BT A400 operator
- 4 × 1 m galvanised rack
- 2 × Mitto remotes
- Hardware pack
- Installation manual
- 4 × 1 m rack
Product overview

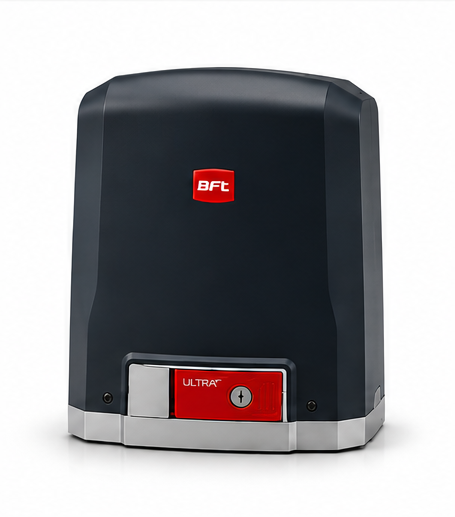

The Deimos Ultra BT A400 targets standard residential sliding gates where you want BFT's upgraded control electronics without overspending on 600kg capacity.
The Deimos Ultra BT A400 is a 24 V DC residential sliding gate operator engineered for gate leaves up to 400 kg. It is specified for projects where installers need clear capacity, control, and accessory compatibility before purchase.
Installation environment: DIY with electrician.

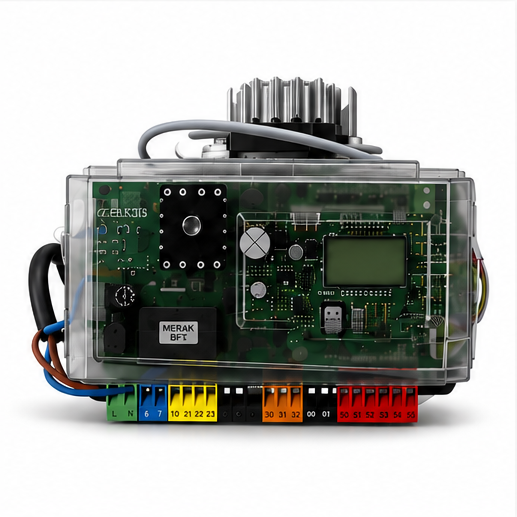

The MERAK SL2 control platform supports Sliding gates up to 400 kg, BFT Mitto remotes, BFT Compacta A20-180 beams, Optional U-Link expansion, BFT Compacta beams, giving installers a familiar accessory path for compliant Australian gate automation.
