Centurion

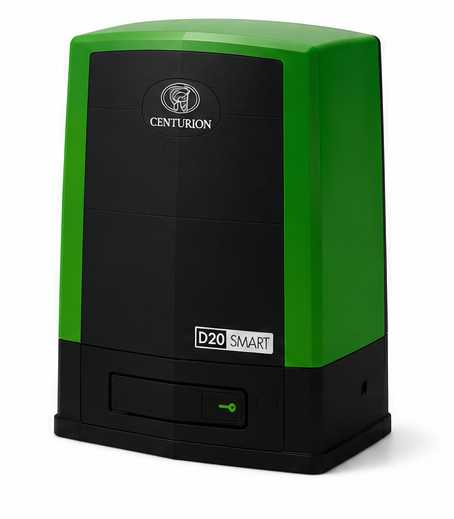

Centurion D20 Smart Sliding Gate Motor — 2000kg
Gate Motor
$2,199$2,399In stock
- Suitable for gates up to 2000 kg
- 24 V DC sliding operator
- SMART control system
- Widely used across Australian installations
Industrial D20 SMART operator for sliding gates to 2000kg — 750 cycles/day. D20 Smart moves industrial sliding leaves up to two tonnes with SMART telemetry. Project commissioning by qualified installers. Technical specifications Model D20 Smart Max gate weight 2000 kg Max oper...
- Gate capacity
- 2000 kg
- Motor type
- Industrial sliding gate motor
- Voltage
- 24 V DC
- Duty cycle
- 750 cycles/day
Technical specifications
| Model | D20 Smart |
|---|---|
| Max gate weight | 2000 kg |
| Max operations/day | 750 |
| Gate speed | Up to 18 m/min |
| Motor voltage | 24 V DC |
| Duty cycle | 45% industrial |
| Type | Industrial sliding gate motor |
| Application | Sliding industrial |

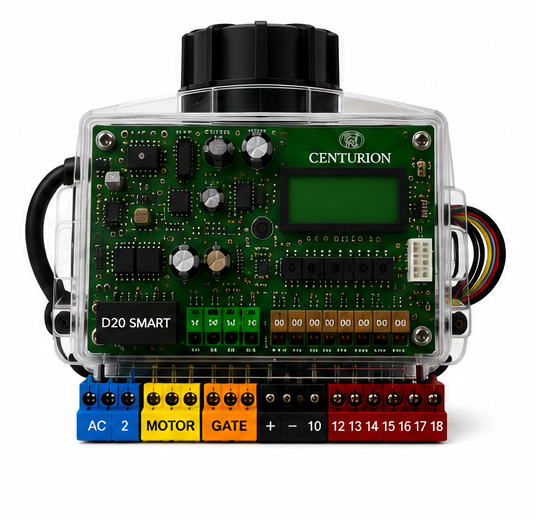

| Control unit | SMART |

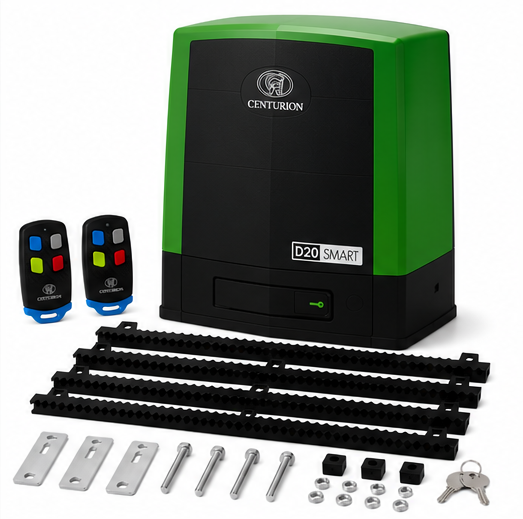

What's included
- D20 Smart operator
- Keys
- Documentation
Product overview
The D20 Smart is a 24 V DC industrial sliding gate operator engineered for gate leaves up to 2000 kg with a published duty rating of 750 cycles per day. It is specified for projects where installers need clear capacity, control, and accessory compatibility before purchase.
Installation environment: Professional required.
Integrates with the Centurion SMART ecosystem — SMART ecosystem, Industrial rack systems — for telemetry, battery backup, and compliant secondary safety where required.
